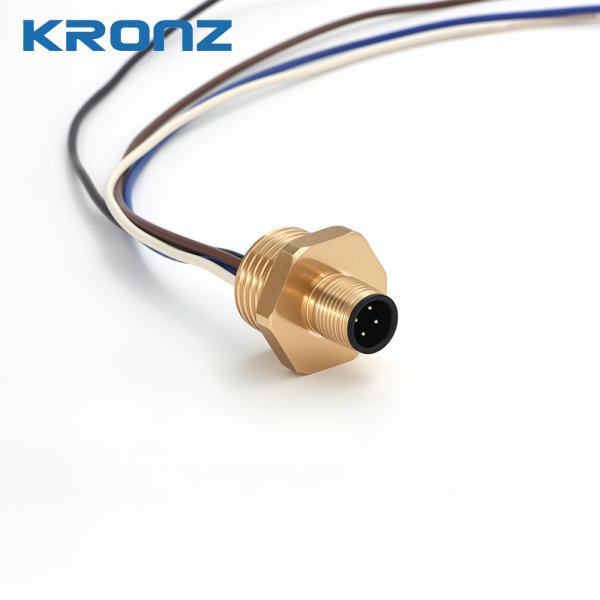

4-Pin M12 Male Connector 1/2" NPT Panel Mount 300V AC/DC Metal Receptacle Flange IP67

Product Categories
Kronz (guangzhou) Electronics Co., Ltd.
Contact Now

4-Pin M12 Male Connector 1/2" NPT Panel Mount 300V AC/DC Metal Receptacle Flange IP67

Brand Name : KRONZ

Model Number : 1/2" NPT-V1-G-S-.3M

Certification : CE

Place of Origin : Guangdong, China

MOQ : 50 pieces

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Operating voltage : Max. 300V AC/DC

Operating current : Max. 4A

Ambient temperature : -40...105°C (-40...221°F)

Degree of protection : IP67

Connection : Single strand leads

Meterial : Nickel plated brass

Contact Now

M12 to 1/2" NPT Male Receptacle Flange, 4-Pin, 300V AC/DC, Metal Panel Mount Circular Connector - IP67

Key Features:

  • Reliable Electrical Performance: Rated for 300V AC/DC with 4 pins. Gold-plated contacts ensure stable signal transmission, low resistance, and long-term connectivity.

  • M12 x 1 Male Threaded Coupling: Standard M12 interface provides a secure, screw-type connection with compatible female-coded cable connectors, preventing accidental disconnection.

  • Wide Temperature Range: Engineered to perform reliably in a broad range of industrial temperatures.

  • Time-Saving Design: The receptacle design allows for easy wiring and secure mounting before the mating connector is attached.

Mechanical Specifications
Sleeve connector Polyamide (PA)
Cable cores 4 x 0.34 mm2, 22 AWG
Length 0.3 m
Note 1/2" - 14 NPT installation thread

4-Pin M12 Male Connector 1/2" NPT Panel Mount 300V AC/DC Metal Receptacle Flange IP67

4-Pin M12 Male Connector 1/2" NPT Panel Mount 300V AC/DC Metal Receptacle Flange IP67

4-Pin M12 Male Connector 1/2" NPT Panel Mount 300V AC/DC Metal Receptacle Flange IP67

4-Pin M12 Male Connector 1/2" NPT Panel Mount 300V AC/DC Metal Receptacle Flange IP67
